GSXR1100 Turbo

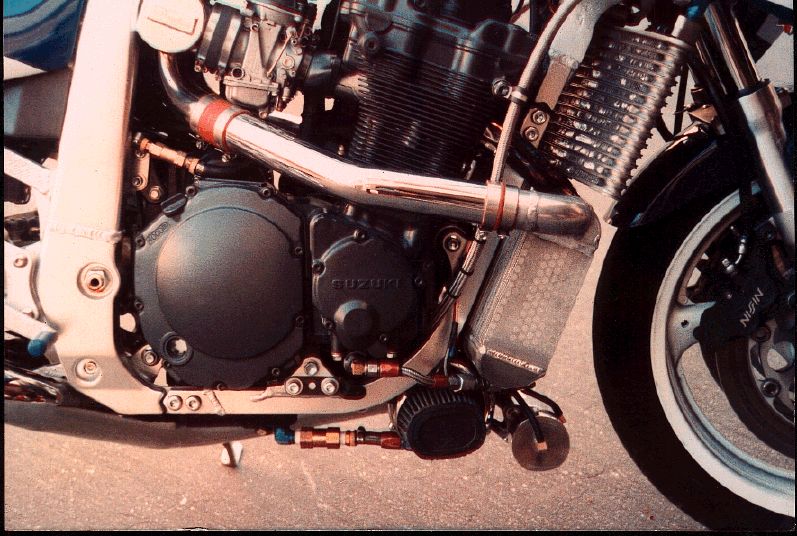

Connector pipe from intercooler to inlet plenum. Both left and right sides are symmetrical. Small air cleaner removed for racing and replaced with a nose-mounted ram air system. Early blow through the carburetor version shown 1988-1989. After 1989 all RB Racing turbos were fuel injected.
